Humminbird HELIX 5 CHIRP GPS G3 PT Fish Finder
$499.99 Original price was: $499.99.$374.99Current price is: $374.99.
Apple Pay
G Pay
Mastercard
PayPal
VISA
✓
Shipping from Chicago
Usually ready after payment
↺
30-Day Free Returns
Free return or refund within 30 days
🚚
Order within 1 to 24h
Shipping typically takes 1–3 business days

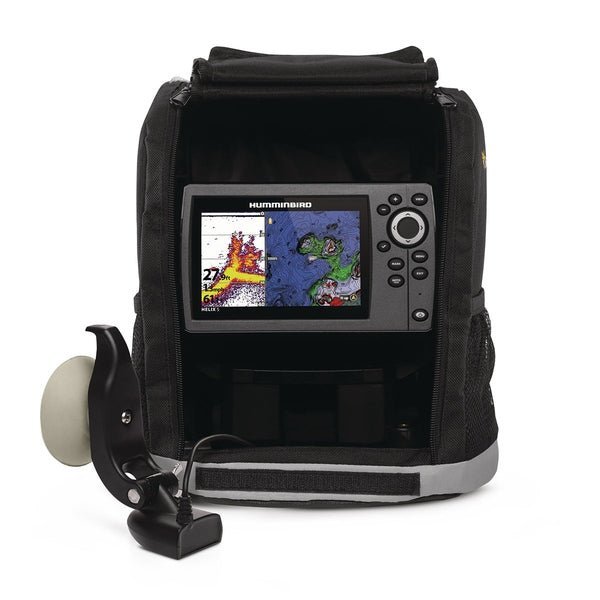

Humminbird Helix 5 G3 Portable CHIRP GPS
Model: 411680-1
- Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
- Portable Carrying Case: Take your fishing system on the go. The soft-sided carrying case protects your Humminbird for safe transport.
- Dual Spectrum CHIRP sonar: Before you cast, know what’s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird’s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
- 1-Year Limited Warranty
If fishing is in your DNA, there’s no such thing as “”too early”” or “”too far.”” The HELIX? 5 Series answers the call with an uncompromising 5″” widescreen, color display. This HELIX 5 CHIRP GPS G3 PT model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Take all of these features on the go thanks to a portable shuttle, battery, charger and suction cup transducer.
Specifications
| Display Size – Diagonal | 5″” |
| Display Pixel Matrix | 800H x 480V |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 20°, 42° & 60° @ -10dB |
| Sonar-Optional | 50 kHz, 50/Low Airmar CHIRP |
| CHIRP – Frequencies Supported | 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz |
| Depth-Sonar | 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz) |
| Interface | Keypad Control |
| Features | Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Portable |
| Memory Card Slot | Single Micro SD |
| Compatible With | AIS, AutoPilot, Minn Kota US2 Sonar |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | yes |
| Sonar Recording | Yes |
| Mount-Standard | Portable |
| Mount-Optional Size | 7.55″” W x 4.28″” H x 1.13″” D |
| GPS Chartplotting | Yes |
| GPS Trackplotting | Yes |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | No |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Size | 5″” |
| Speed | GPS Provided |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| MEGA Live Compatibility | No |
What’s in the Box:
- Helix 5 G3 CHIRP GPS
- Shuttle
- Bag
- Suction cup mount transducer
- Power cable
- Gimbal mounting bracket
- Mounting hardware.
Where do we deliver?
We ship across the USA.
Shipping Cost
Free Express Shipping on all orders.
Delivery Details
- Handling Time: 1 business day (Mon–Fri)
- Transit Time: 1–3 business days (Mon–Fri)
- Order Cut-off Time: 12:00 AM GMT (UTC +0)
Multiple Addresses
We do not support multiple shipping addresses in a single order. For multiple destinations, place separate orders.
