ECHOMAP™ UHD 63cv Ice Fishing Bundle
FISH YEAR-ROUND WITH THE ECHOMAP UHD ICE FISHING BUNDLE
Designed for the passionate angler, the ECHOMAP UHD 63cv ice fishing bundle is made for ice or open water and can be easily transported between seasons.
The sun won’t steal your screen. The bright 6” display is sunlight readable.
You need to see what’s beneath the surface. With the included transducer, you can.
With the built-in flasher, you won’t lose sight of the jig or the fish it attracts.
It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000+ lakes.
ECHOMAP™ UHD 63cv Ice Fishing Specs
| ✔ | TIDE TABLES |
| ✔ | BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
| ✔ | SONAR RECORDING |
| ✔ | SONAR HISTORY REWIND |
| ✔ | NMEA 2000® COMPATIBLE |
| ✔ | WIRELESS CONNECTIVITY |
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- Frequencies Supported: CHIRP High Wide (150-240 kHz)
- Maximum Depth: 800 ft freshwater
- Transducer Pin Number: 4-pin
- Physical Dimensions: 10.5″ × 9.5″ × 10.5″ (26.7 × 22.9 × 26.7 cm)
- Display Size: 5.4″ x 3.1″; 6.2″ diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
- Display Resolution: 480 x 800 pixels
- Display Type: WVGA color
- Weight: 10.7 lbs (4.9 kg)
- Water Rating: IPX7
- Power Consumption: 12 W
- Antenna: Internal or external over NMEA 2000
- Transmit Power: 250 W (RMS)
- Receiver: 5 Hz
- Preloaded Maps: LakeVü g3 (inland maps)
- Accepted Data Cards: 1 microSD™ card; 32 GB maximum card size

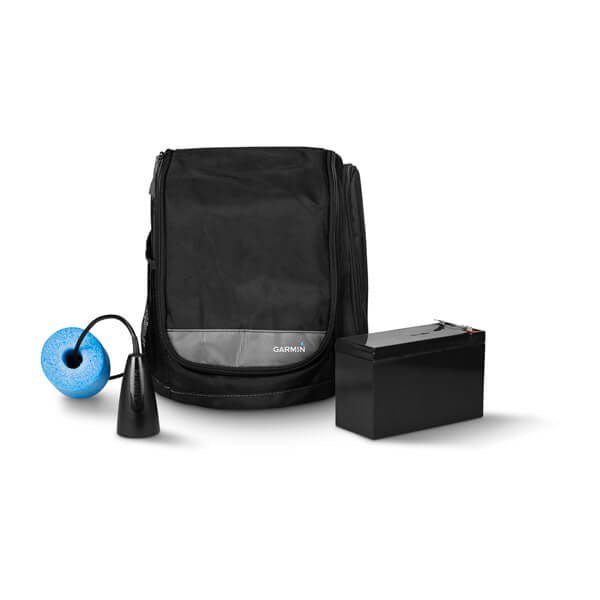

Bundle Includes: ECHOMAP™ UHD 63cv chartplotter, GT8HW-IF transducer, Power cable, Tilt/swivel mount, Documentation, Carrying Case with handle, Foam float, Rechargeable battery, Battery charger.
ECHOMAP™ UHD 63cv Ice Fishing Features
ECHOMAP UHD

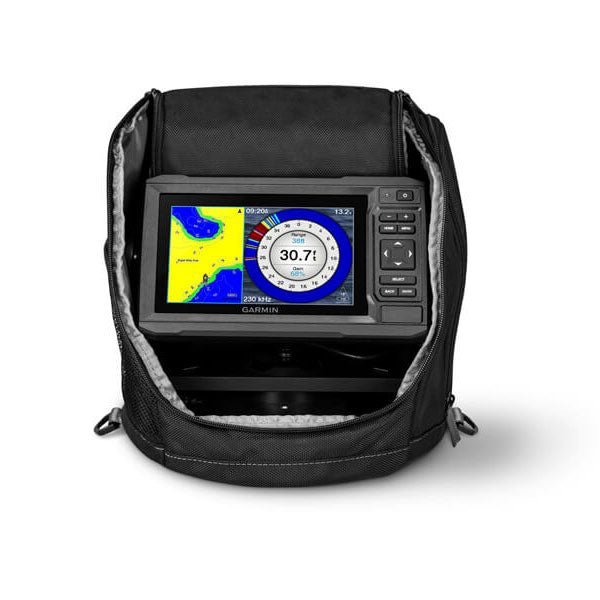

The portable 6” ECHOMAP UHD 63cv ice fishing bundle is excellent on ice and on your boat for year-round fishing, and it features a glove-friendly keyed interface.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
ICE FISHING TRANSDUCER
The bundle includes a high wide CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish arches with excellent target separation.
LAKEVÜ G3 MAPS
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
SUPPORTS SCANNING SONAR
ECHOMAP UHD 63cv also supports ClearVü scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).
CUSTOM COMBOS
You can create custom pages that combine sonar, flasher and map on your display.
